Mechanical Cross
| Product Name | Mechanical Cross |
| Model No. | XGQT04 |
| Specifications | Main pipe: 50–300 mm | Branch configurations: grooved or threaded |
| Category | Mechanical Joint Fittings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The mechanical cross provides four-way branch connections in a grooved piping system. Available in grooved or threaded branch configurations, it enables complex pipe network layouts without the need for welding.
Features
- ✓Four-way connection capability
- ✓Grooved or threaded branch options
- ✓No welding required
- ✓Ductile iron — ASTM A536
Technical Data
Model: XGQT04
| Nominal Size (mm/in) | Pipe O.D (mm) | A (mm) | L (mm) | H (mm) | Bolt/Nut | Hole Dia (mm) | Working Pressure (psi) |
|---|---|---|---|---|---|---|---|
| 65×25 | 76.1×33.7 | 139 | 72 | 73 | 3/8×2-1/8 (M10×55) | φ38 | 300 |
| 65×32 | 76.1×42.4 | 139 | 83 | 73 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 65×40 | 76.1×48.3 | 139 | 90 | 75 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 80×32 | 88.9×42.4 | 155 | 83 | 82 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 80×40 | 88.9×48.3 | 155 | 90 | 82 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 80×50 | 88.9×60.3 | 155 | 100 | 82 | 3/8×2-1/8 (M10×55) | φ64 | 300 |
| 100×50 | 108×60.3 | 167 | 100 | 92.5 | 1/2×3 (M12×75) | φ64 | 300 |
| 100×25 | 114.3×33.7 | 181 | 72 | 95.5 | 1/2×3 (M12×75) | φ38 | 300 |
| 100×32 | 114.3×42.4 | 181 | 83 | 95.5 | 1/2×3 (M12×75) | φ46 | 300 |
| 100×40 | 114.3×48.3 | 181 | 90 | 95.5 | 1/2×3 (M12×75) | φ53 | 300 |
| 100×50 | 114.3×60.3 | 181 | 117 | 95.5 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×40 | 139.7×48.3 | 212 | 90 | 109 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 139.7×60.3 | 212 | 100 | 109 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×65 | 139.7×76.1 | 212 | — | — | 1/2×3 (M12×75) | φ70 | 300 |
| 125×40 | 141.3×48.3 | 212 | 90 | 109 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 141.3×60.3 | 212 | 100 | 109 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×65 | 141.3×76.1 | 212 | — | — | 1/2×3 (M12×75) | φ70 | 300 |
| 150×50 | 159×60.3 | 233 | 100 | 118 | 9/16×3-1/3 (M14×85) | φ64 | 300 |
| 150×65 | 159×76.1 | 233 | 117 | 118 | 9/16×3-1/3 (M14×85) | φ80 | 300 |
| 150×80 | 159×88.9 | 233 | 129 | 118 | 9/16×3-1/3 (M14×85) | φ92 | 300 |
| 150×50 | 165.1×60.3 | 239 | 100 | 121 | 9/16×3-1/3 (M14×85) | φ64 | 300 |
| 150×65 | 165.1×76.1 | 248 | — | — | 9/16×3-1/3 (M14×85) | φ80 | 300 |
| 150×80 | 165.1×88.9 | 248 | — | — | 9/16×3-1/3 (M14×85) | φ92 | 300 |
| 150×50 | 168.3×60.3 | 239 | 100 | 121 | 9/16×3-1/3 (M14×85) | φ64 | 300 |
| 150×65 | 168.3×76.1 | 248 | — | — | 9/16×3-1/3 (M14×85) | φ70 | 300 |
| 150×80 | 168.3×88.9 | 248 | — | — | 9/16×3-1/3 (M14×85) | φ89 | 300 |
| 200×50 | 219.1×60.3 | 311 | 100 | 147.5 | 5/8×3-1/3 (M16×85) | φ64 | 300 |
| 200×65 | 219.1×76.1 | 311 | 117 | 147.5 | 5/8×3-1/3 (M16×85) | φ70 | 300 |
| 200×80 | 219.1×88.9 | 311 | 129 | 147.5 | 5/8×3-1/3 (M16×85) | φ89 | 300 |
| 200×100 | 219.1×108 | 311 | 143 | 148.5 | 5/8×3-1/3 (M16×85) | φ104 | 300 |
| 200×100 | 219.1×114.3 | 311 | 153 | 149 | 5/8×3-1/3 (M16×85) | φ114 | 300 |

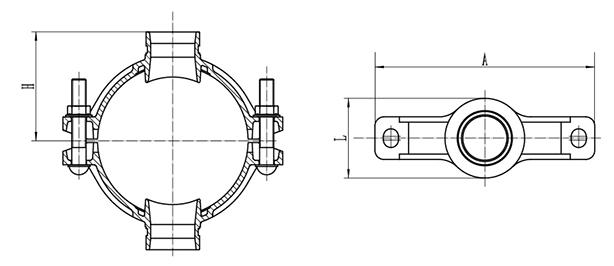

Dimension Drawing
