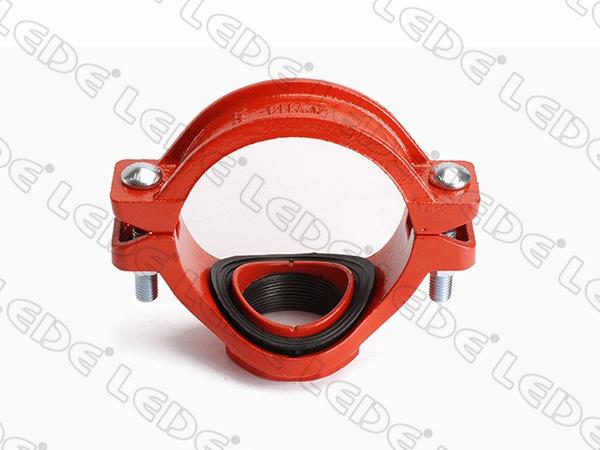

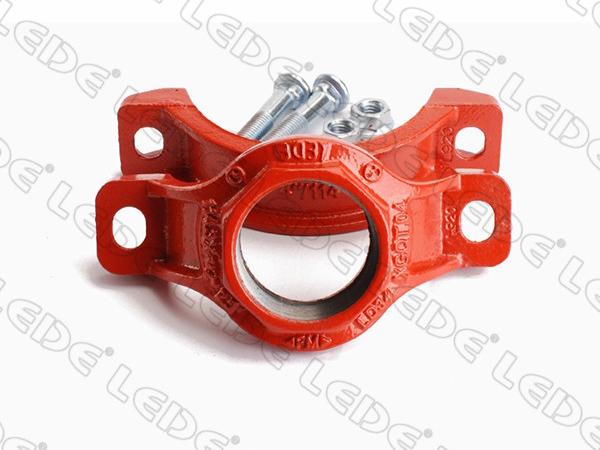

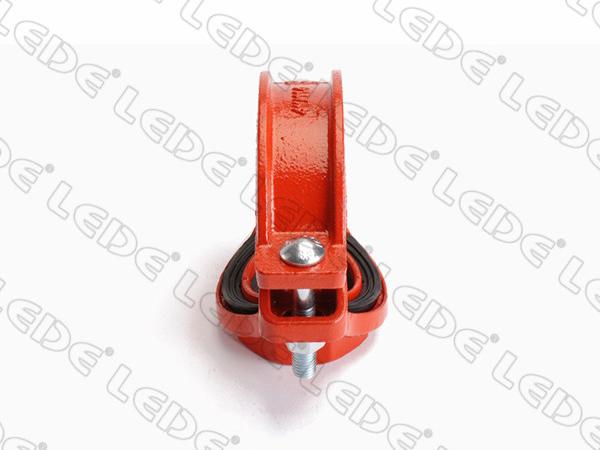

Threaded Mechanical Tee
| Product Name | Threaded Mechanical Tee |
| Model No. | XGQT04 |
| Specifications | Main pipe: 50–300 mm | Threaded branch: 1/2–2 in NPT/BSP |
| Category | Mechanical Joint Fittings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The threaded mechanical tee provides a branch outlet with NPT/BSP thread for small-diameter branch connections onto a grooved main pipe run. Ideal for connecting instruments, sensors, or small-bore sprinkler drops.
Features
- ✓Ductile iron construction
- ✓Lead free orange paint
- ✓Conforms to ASTM A536 standards
- ✓UL Listed, FM approved
Technical Data
Model: XGQT04
| Nominal Size (mm/in) | Pipe O.D (mm) | A (mm) | L (mm) | H (mm) | Bolt/Nut | Hole Dia (mm) | Working Pressure (psi) |
|---|---|---|---|---|---|---|---|
| 50×15 | 60.3×21.3 | 120 | 54 | 50 | 3/8×2 (M10×50) | φ30 | 300 |
| 50×20 | 60.3×26.7 | 120 | 54 | 50 | 3/8×2 (M10×50) | φ30 | 300 |
| 50×25 | 60.3×33.7 | 120 | 64 | 50 | 3/8×2 (M10×50) | φ38 | 300 |
| 50×32 | 60.3×42.4 | 120 | 72 | 55 | 3/8×2 (M10×50) | φ46 | 300 |
| 50×40 | 60.3×48.3 | 120 | 72 | 63 | 3/8×2 (M10×50) | φ46 | 300 |
| 65×15 | 73×21.3 | 139 | 54 | 58 | 3/8×2-1/8 (M10×55) | φ30 | 300 |
| 65×20 | 73×26.7 | 139 | 54 | 58 | 3/8×2-1/8 (M10×55) | φ30 | 300 |
| 65×25 | 73.0×33.7 | 139 | 65 | 60 | 3/8×2-1/8 (M10×55) | φ38 | 300 |
| 65×32 | 73.0×42.4 | 139 | 72 | 60 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 65×40 | 73.0×48.3 | 139 | 79 | 60 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 65×15 | 76.1×21.3 | 139 | 54 | 58 | 3/8×2-1/8 (M10×55) | φ30 | 300 |
| 65×20 | 76.1×26.7 | 139 | 54 | 58 | 3/8×2-1/8 (M10×55) | φ30 | 300 |
| 65×25 | 76.1×33.7 | 139 | 65 | 60 | 3/8×2-1/8 (M10×55) | φ38 | 300 |
| 65×32 | 76.1×42.4 | 139 | 72 | 60 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 65×40 | 76.1×48.3 | 139 | 79 | 60 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 80×15 | 88.9×21.3 | 155 | 59 | 66.5 | 3/8×2-1/8 (M10×55) | φ30 | 300 |
| 80×20 | 88.9×26.7 | 155 | 59 | 66.5 | 3/8×2-1/8 (M10×55) | φ30 | 300 |
| 80×25 | 88.9×33.7 | 155 | 64 | 67 | 3/8×2-1/8 (M10×55) | φ38 | 300 |
| 80×32 | 88.9×42.4 | 155 | 72 | 67 | 3/8×2-1/8 (M10×55) | φ46 | 300 |
| 80×40 | 88.9×48.3 | 155 | 79 | 67 | 3/8×2-1/8 (M10×55) | φ53 | 300 |
| 80×50 | 88.9×60.3 | 155 | 90 | 67 | 3/8×2-1/8 (M10×55) | φ64 | 300 |
| 100×25 | 108.1×33.7 | 167 | 76 | 76 | 1/2×2-5/8 (M12×65) | φ38 | 300 |
| 100×32 | 108.0×42.4 | 167 | 83 | 76 | 1/2×2-5/8 (M12×65) | φ46 | 300 |
| 100×40 | 108.0×48.3 | 167 | 90 | 76 | 1/2×2-5/8 (M12×65) | φ53 | 300 |
| 100×50 | 108.0×60.3 | 167 | 100 | 78 | 1/2×2-5/8 (M12×65) | φ64 | 300 |
| 100×65 | 108.0×76.1 | 167 | 117 | 105 | 1/2×2-5/8 (M12×65) | φ80 | 300 |
| 100×25 | 114.3×33.7 | 181 | 64 | 79 | 1/2×2-5/8 (M12×65) | φ38 | 300 |
| 100×32 | 114.3×42.4 | 181 | 72 | 79 | 1/2×2-5/8 (M12×65) | φ46 | 300 |
| 100×40 | 114.3×48.3 | 181 | 79 | 79 | 1/2×2-5/8 (M12×65) | φ53 | 300 |
| 100×50 | 114.3×60.3 | 181 | 90 | 79 | 1/2×2-5/8 (M12×65) | φ64 | 300 |
| 100×65 | 114.3×76.1 | 181 | 117 | 105 | 1/2×2-5/8 (M12×65) | φ70 | 300 |
| 100×80 | 114.3×88.9 | 181 | 129 | 83 | 1/2×2-5/8 (M12×65) | φ89 | 300 |
| 125×25 | 133.0×33.7 | 205 | 76 | 89 | 1/2×3 (M12×75) | φ38 | 300 |
| 125×32 | 133.0×42.4 | 205 | 83 | 89 | 1/2×3 (M12×75) | φ46 | 300 |
| 125×40 | 133.0×48.3 | 205 | 90 | 89 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 133.0×60.3 | 205 | 100 | 89 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×65 | 133.0×76.1 | 205 | 117 | 114 | 1/2×3 (M12×75) | φ80 | 300 |
| 125×80 | 133.0×88.9 | 205 | — | — | 1/2×3 (M12×75) | φ92 | 300 |
| 125×25 | 139.7×33.7 | 212 | 76 | 93 | 1/2×3 (M12×75) | φ38 | 300 |
| 125×32 | 139.7×42.4 | 212 | 83 | 93 | 1/2×3 (M12×75) | φ46 | 300 |
| 125×40 | 139.7×48.3 | 212 | 90 | 93 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 139.7×60.3 | 212 | 100 | 93 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×65 | 139.7×76.1 | 212 | 117 | 115 | 1/2×3 (M12×75) | φ70 | 300 |
| 125×80 | 139.7×88.9 | 212 | — | — | 1/2×3 (M12×75) | φ89 | 300 |
| 125×25 | 141.3×33.7 | 212 | 76 | 93 | 1/2×3 (M12×75) | φ38 | 300 |
| 125×32 | 141.3×42.4 | 212 | 83 | 93 | 1/2×3 (M12×75) | φ46 | 300 |
| 125×40 | 141.3×48.3 | 212 | 90 | 93 | 1/2×3 (M12×75) | φ53 | 300 |
| 125×50 | 141.3×60.3 | 212 | 100 | 93 | 1/2×3 (M12×75) | φ64 | 300 |
| 125×65 | 141.3×76.1 | 212 | 117 | 115 | 1/2×3 (M12×75) | φ70 | 300 |
| 125×80 | 141.3×88.9 | 212 | — | — | 1/2×3 (M12×75) | φ89 | 300 |
| 150×25 | 159×33.7 | 233 | 76 | 101.5 | 9/16×3 (M14×75) | φ38 | 300 |
| 150×32 | 159.0×42.4 | 233 | 83 | 101.5 | 9/16×3 (M14×75) | φ46 | 300 |
| 150×40 | 159.0×48.3 | 233 | 90 | 101.5 | 9/16×3 (M14×75) | φ53 | 300 |
| 150×50 | 159.0×60.3 | 233 | 100 | 101.5 | 9/16×3 (M14×75) | φ64 | 300 |
| 150×65 | 159.0×76.1 | 233 | 117 | 128 | 5/8×3-1/3 (M16×85) | φ80 | 300 |
| 150×80 | 159.0×88.9 | 233 | — | — | 5/8×3-1/3 (M16×85) | φ92 | 300 |
| 150×100 | 159.0×114.3 | 233 | — | — | 5/8×3-1/3 (M16×85) | φ118 | 300 |
| 150×25 | 165.1×33.7 | 248 | 64 | 106 | 5/8×3-1/3 (M16×85) | φ38 | 300 |
| 150×32 | 165.1×42.4 | 248 | 72 | 106 | 5/8×3-1/3 (M16×85) | φ46 | 300 |
| 150×40 | 165.1×48.3 | 248 | 79 | 106 | 5/8×3-1/3 (M16×85) | φ53 | 300 |
| 150×50 | 165.1×60.3 | 248 | 90 | 106 | 5/8×3-1/3 (M16×85) | φ64 | 300 |
| 150×65 | 165.1×76.1 | 248 | 107 | 128 | 5/8×3-1/3 (M16×85) | φ80 | 300 |
| 150×80 | 165.1×88.9 | 248 | — | — | 5/8×3-1/3 (M16×85) | φ92 | 300 |
| 150×100 | 165.1×114.3 | 248 | — | — | 5/8×3-1/3 (M16×85) | φ118 | 300 |
| 150×25 | 168.3×33.7 | 248 | 64 | 106 | 5/8×3-1/3 (M16×85) | φ38 | 300 |
| 150×32 | 168.3×42.4 | 248 | 72 | 106 | 5/8×3-1/3 (M16×85) | φ46 | 300 |
| 150×40 | 168.3×48.3 | 248 | 79 | 106 | 5/8×3-1/3 (M16×85) | φ53 | 300 |
| 150×50 | 168.3×60.3 | 248 | 90 | 106 | 5/8×3-1/3 (M16×85) | φ64 | 300 |
| 150×65 | 168.3×76.1 | 248 | 107 | 128 | 5/8×3-1/3 (M16×85) | φ70 | 300 |
| 150×80 | 168.3×88.9 | 248 | — | — | 5/8×3-1/3 (M16×85) | φ89 | 300 |
| 150×100 | 168.3×114.3 | 248 | — | — | 5/8×3-1/3 (M16×85) | φ114 | 300 |
| 200×25 | 219.1×33.7 | 311 | 76 | 131 | 5/8×3-1/3 (2-M16×85) | φ38 | 300 |
| 200×32 | 219.1×42.4 | 311 | 83 | 134 | 5/8×3-1/3 (2-M16×85) | φ46 | 300 |
| 200×40 | 219.1×48.3 | 311 | 90 | 134 | 5/8×3-1/3 (2-M16×85) | φ53 | 300 |
| 200×50 | 219.1×60.3 | 311 | 100 | 134 | 5/8×3-1/3 (2-M16×85) | φ64 | 300 |
| 200×65 | 219.1×76.1 | 311 | 117 | 156 | 5/8×3-1/3 (2-M16×85) | φ70 | 300 |
| 200×80 | 219.1×88.9 | 311 | — | — | 5/8×3-1/3 (2-M16×85) | φ89 | 300 |
| 200×100 | 219.1×114.3 | 311 | — | — | 5/8×3-1/3 (2-M16×85) | φ114 | 300 |
| 250×65 | 273.0×76.1 | 379 | — | — | 3/4×3-1/2 (M20×90) | φ80 | 300 |
| 250×80 | 273.0×88.9 | 379 | — | — | 3/4×3-1/2 (M20×90) | φ92 | 300 |

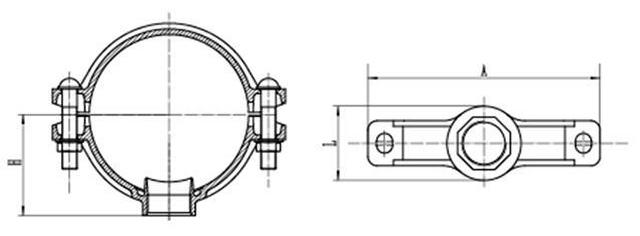

Dimension Drawing
