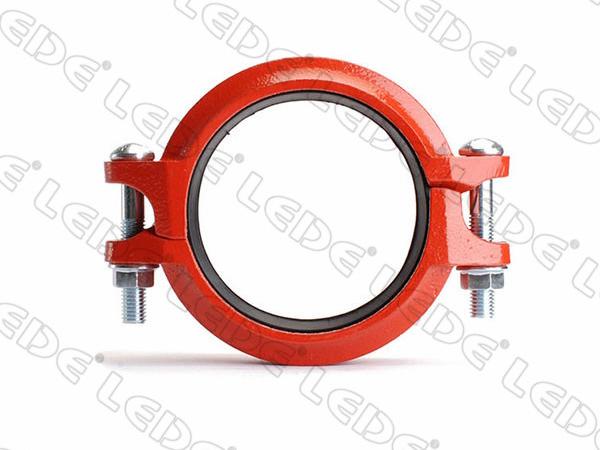

Angle Pad Grooved Piping System Pipe Coupling
| Product Name | Angle Pad Grooved Piping System Pipe Coupling |
| Model No. | GKS |
| Specifications | Nominal sizes: 25–300 mm | Standard orange paint or epoxy powder finish |
| Category | Grooved Piping System Pipe Couplings |
| Manufacturer | Shandong Lede Machinery Co., Ltd. |
Product Introduction
The angle pad grooved piping system pipe coupling features angled pad design for enhanced grip and sealing performance. Made from ductile iron conforming to ASTM A536, it provides reliable connections in high-pressure pipeline systems for fire protection and industrial applications.
Features
- ✓Angled pad design for superior grip
- ✓Ductile iron — ASTM A536
- ✓UL Listed and FM Approved
- ✓Suitable for fire protection and industrial pipelines
Technical Data
Model: GKS
| Nominal Size (mm/in) | Pipe O.D (mm/in) | ΦD (mm) | L (mm) | H (mm) | Bolt (inch/mm) | Working Pressure (Psi) |
|---|---|---|---|---|---|---|
| 25 / 1" | 33.7 / 1.327 | 56 | 96 | 47 | 3/8×2-3/8 (M10×60) | 300 |
| 32 / 1¼" | 42.4 / 1.669 | 64 | 106 | 47 | — | 300 |
| 40 / 1½" | 48.3 / 1.9 | 69 | 113 | 47 | — | 300 |
| 50 / 2" | 60.3 / 2.375 | 88 | 122 | 47 | — | 300 |
| 65 / 2½" | 73 / 2.875 | 100 | 137 | 47 | 3/8×2-3/4 (M10×70) | 300 |
| 65 / 2½" | 76.1 / 3 | 100 | 137 | 47 | 3/8×2-3/4 (M10×70) | 300 |
| 80 / 3" | 88.9 / 3.5 | 116 | 154 | 47 | — | 300 |
| 100 / 4" | 114.3 / 4.5 | 142 | 188 | 52 | ½×3 (M12×75) | 300 |
| 125 / 5" | 139.7 / 5.5 | 170 | 219 | 52 | ½×3-1/8 (M12×80) | 300 |
| 125 / 5" | 141.3 / 5.563 | 170 | 219 | 52 | ½×3-1/8 (M12×80) | 300 |
| 150 / 6" | 159 / 6.25 | 196 | 244 | 52 | — | 300 |
| 150 / 6" | 165.1 / 6.5 | 197 | 244 | 52 | — | 300 |
| 150 / 6" | 168.3 / 6.625 | 199 | 246 | 52 | — | 300 |
| 200 / 8" | 219.1 / 8.625 | 262 | 322 | 66 | 5/8×4-3/4 (M16×120) | 300 |
| 250 / 10" | 273 / 10.75 | 325 | 400 | 66 | 3/4×6-7/10 (M20×170) | 300 |
| 300 / 12" | 323.9 / 12.75 | 376 | 468 | 67 | 7/8×7-1/4 (M22×185) | 300 |
Dimension Drawing
